28 Oct Understanding Kitchen Plumbing: Connectors and Bottle Traps
A kitchen sink is only as efficient as the plumbing beneath it. The right connectors and traps help ensure smooth drainage, prevent unpleasant odours, and make installation and maintenance easier.
Different sink and basin configurations require different plumbing components. Understanding their purpose helps homeowners, designers, and installers select the right solution for each application.
Don’t Miss: Kitchen Sink Accessories: Choosing the Right Accessories for Your Sink
Types of Kitchen Plumbing Connectors
Different sink designs require different plumbing connections. Selecting the appropriate component ensures proper wastewater flow and a secure connection to the drainage system.

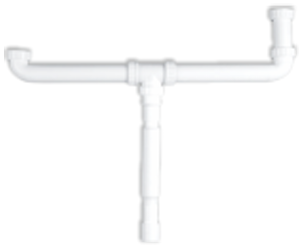

- Connector for One-and-a-Half-Bowl Sinks
A one-and-a-half-bowl sink has two outlets that need to connect to a common drainage line.
A suitable connector brings both outlets together and directs wastewater into the drainage system. Some connectors can be trimmed during installation, allowing them to adapt to different plumbing layouts.
Suitable for: One-and-a-half-bowl kitchen sinks.

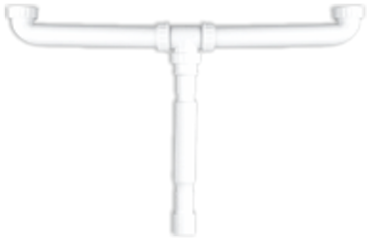

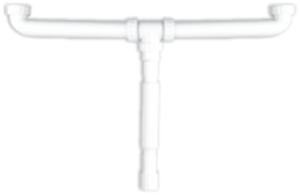

- Connector for Two-Bowl Sinks
Two-bowl sinks have two separate outlets that need to connect to a common waste pipe.
A two-bowl connector combines the outlets and directs wastewater towards the drainage line, providing a practical solution for multiple-outlet configurations.
Suitable for: Two-bowl kitchen sinks.
- Corrugated Flexible Pipe for Single-Bowl Sinks
A single-bowl sink requires a connection between the sink outlet and the drainage system. In some kitchens, the available space or pipe position may require additional flexibility.
A corrugated flexible pipe can accommodate different plumbing layouts and make positioning the drainage connection easier.
Suitable for: Single-bowl sinks where flexibility is required during installation.

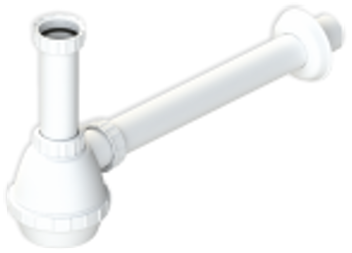

What Is a Bottle Trap?
A bottle trap is installed below a sink or basin to connect the outlet to the waste pipe.
Its primary function is to retain a small amount of water, creating a water seal. This seal helps prevent unpleasant odours and gases from the drainage system from entering the kitchen or wash area.
Bottle traps can also provide convenient access for inspection and cleaning when maintenance is required.
Suitable for: Kitchen sinks and wash basins.

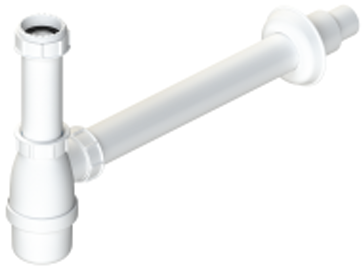

Basin Bottle Trap
A basin bottle trap connects the basin outlet to the waste pipe while maintaining a water seal.
It helps support efficient drainage while providing a practical connection between the basin and the waste system.
Suitable for: Wash basins.
Why Choosing the Right Plumbing Component Matters
Although plumbing components remain hidden beneath the sink, they have an important role in the overall performance of the drainage system.
Choosing the right component can help:
- Maintain smooth wastewater flow
- Create a secure connection
- Accommodate different sink configurations
- Simplify installation
- Make inspection and maintenance easier
- Help prevent unpleasant drainage odours
Conclusion
Efficient kitchen plumbing starts with selecting components that match the sink configuration and drainage layout. Connectors help establish the right connection between sink outlets and waste pipes, while bottle traps provide a water seal that helps keep drainage systems hygienic and odour-free.
Understanding the function of each component allows homeowners, designers, and installers to plan plumbing systems that are functional, efficient, and easier to maintain.
